Bulk Bag Unloader
Product description
The dust-free feeding station with integrated impurity separation function is a core feeding equipment in industries such as medicine, food, and chemical engineering. It integrates the functions of dust-free feeding and impurity separation. During feeding, through a sealed structure and negative pressure system, dust is prevented from escaping, ensuring the working environment. It is equipped with a screening component, which can simultaneously filter out lumps and foreign substances in the raw materials, improving the purity of the raw materials. The equipment is compatible with various types of materials such as bagged and barrel-packed ones. It is easy to operate and clean, taking into account environmental protection, efficiency, and material quality, and helps to achieve the intensification of production processes.
Working principle
The dust-free feeding station and dust removal integrated equipment achieves its functions through the collaboration of three systems: the closed space at the feeding port, the negative pressure fan and filter material remove and retain the dust, preventing leakage; the raw materials are sent to the screening component through the guiding structure; the vibrating/rotating screen filters, and the clean raw materials enter the downstream process, while stones and other impurities are discharged from the dedicated outlet, completing the continuous operation.
Features & Benefits
1. Efficient Integration: Simultaneously achieve dust-free feeding and impurity filtration, eliminating the need for separate feeding and impurity removal equipment, simplifying the production process and enhancing operational efficiency.
2. Cleanliness: Sealed structure + negative pressure dust control design, preventing dust leakage, ensuring the workshop environment and the health of operators, and meeting environmental protection standards.
3. Strong Adaptability: Compatible with various material forms such as bagged and bulk-packed, and can be adjusted with sieve screens according to the particle size of raw materials to meet the production needs of different industries.
4. Easy to Operate and Maintain: Simple structure design, convenient steps for feeding and cleaning impurities, easy disassembly and cleaning of the equipment, reducing operation and maintenance costs.
5. Quality Improvement and Stability: Precisely retain foreign substances and lumps, ensuring raw material purity, reducing subsequent production failures, and helping to maintain product quality stability.
Product parameter
| Model | Feeding port diameter | Power of blower | Air pressure of blower |
| EDS-600 | 600mm/24inch | 1.5KW | 3Kpa-25m³/m |
| EDS-800 | 800mm/32inch | 1.5KW | 3Kpa-25m³/m |
| EDS-1000 | 1000mm/40inch | 2.2KW | 3.6Kpa-39m³/m |
| EDS-1200 | 1200mm/48inch | 2.2KW | 3.6Kpa-39m³/m |

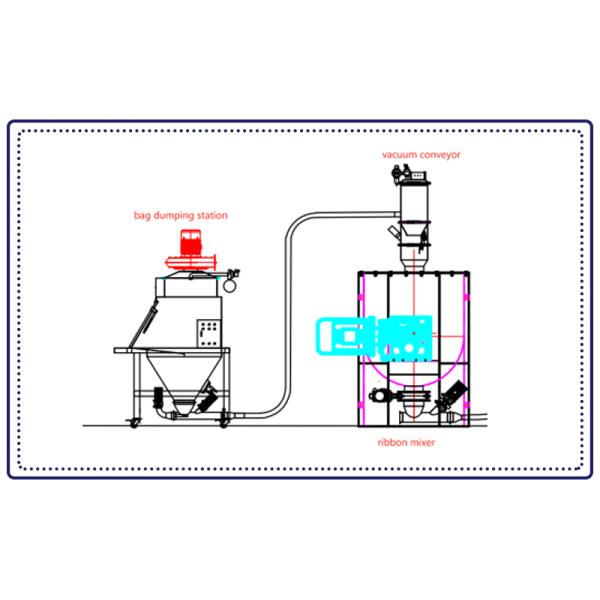

Production line diagram
1. Workers feed powder into the dumping station
2. Vacuum conveyor transfer the powder to the mixer
3. Starting mixing
Detail display
Product display
Application
Packaging & Shipping
Why Choose Us
About us
We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you.Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
|
|
